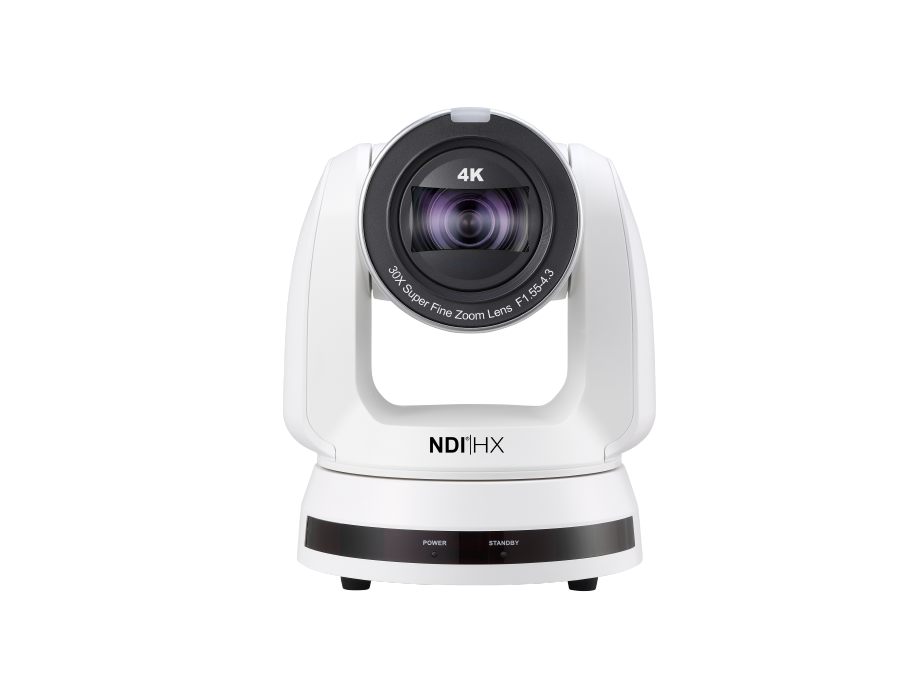

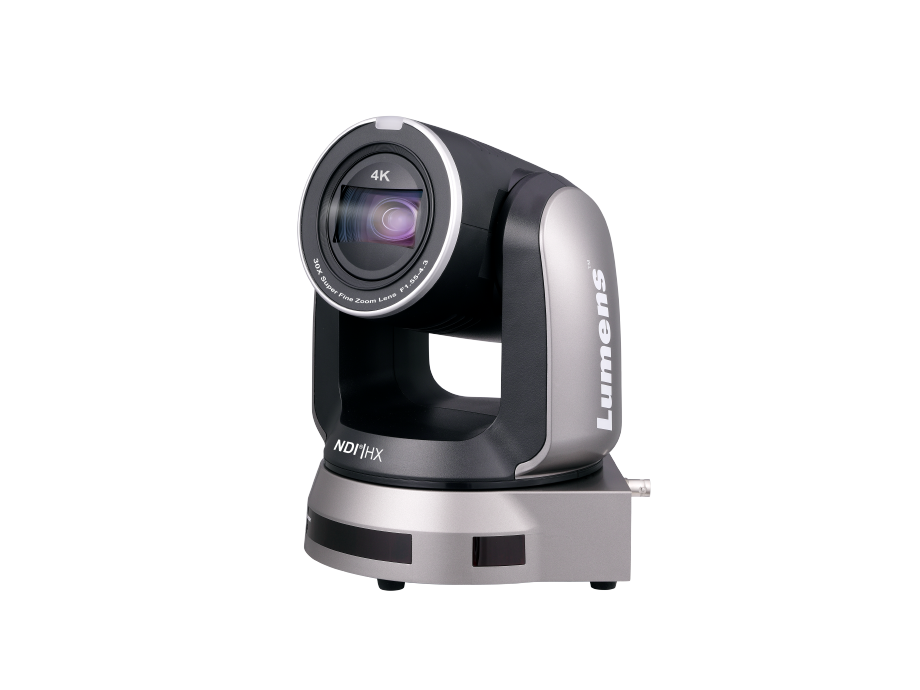

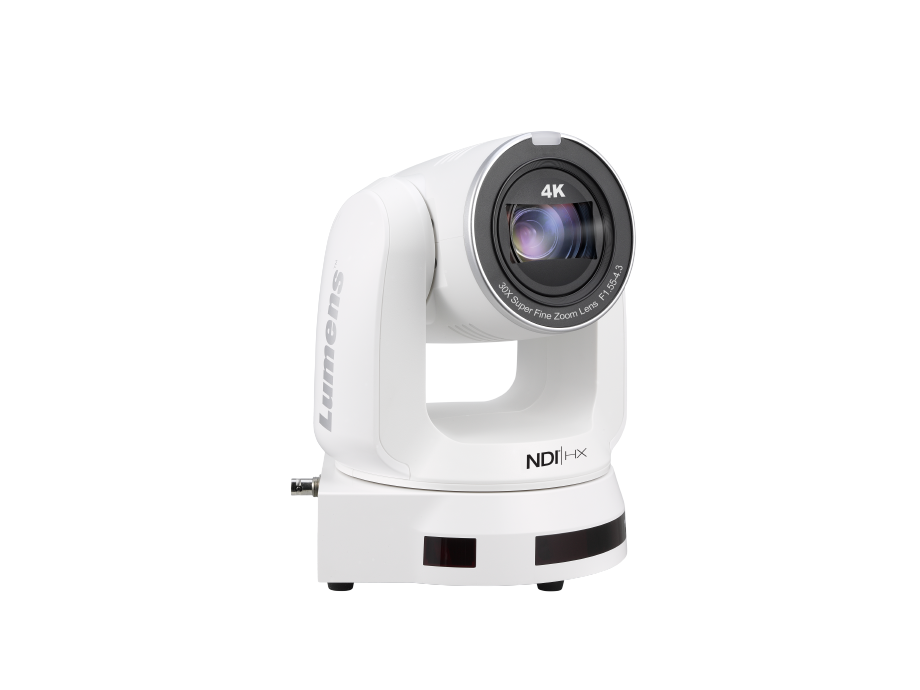

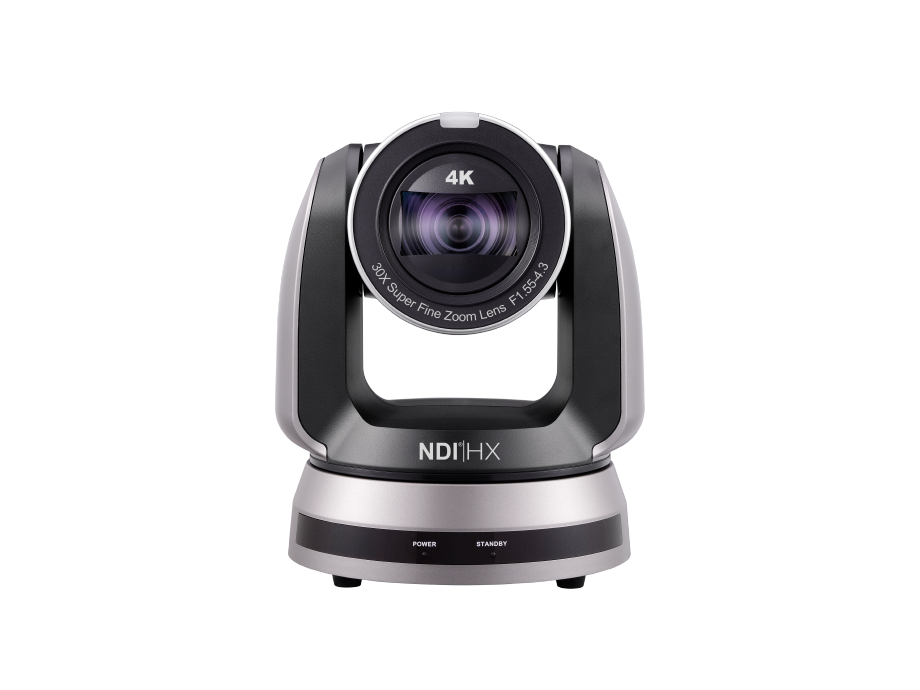

VC-A71SN
4K NDI® PTZ Camera with NDI HX3 and 12G-SDI
- 2160p 60, 30x optical zoom, 1/1.8” Sensor
- 12G-SDI, HDMI, Ethernet, USB3.0 output
- Support NDI HX3 / NDI HX2 / RTSP / RTMP / RTMPS / MPEG- TS / SRT
- Support FreeD protocol for live VR/AR production
- Support BT.2020 color space
- Optional Accessories
- Specification

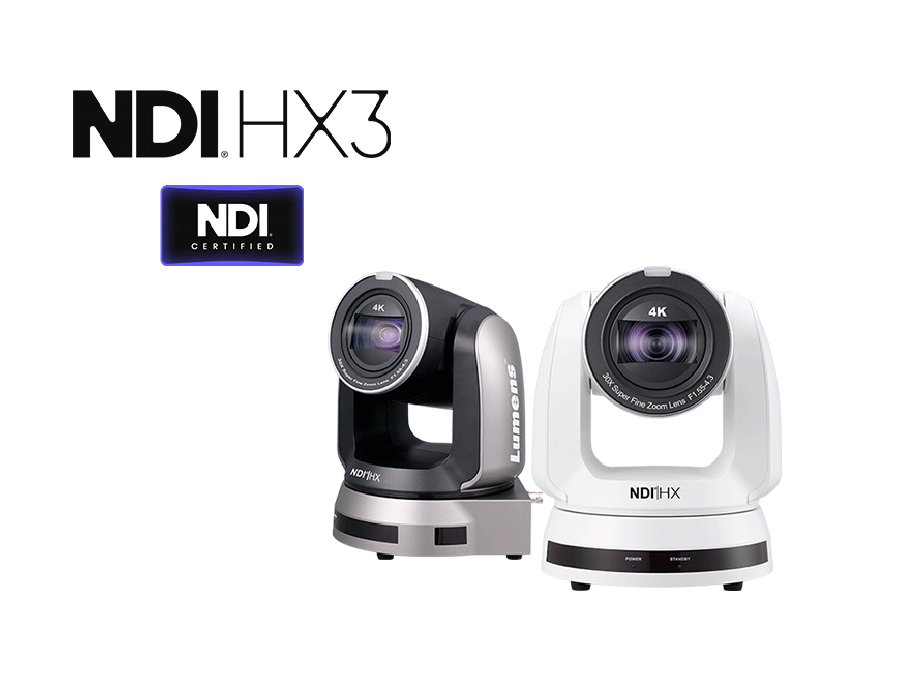

NDI HX3 Technology
VC-A71SN supports the latest version of the NDI protocol, NDI HX3. It delivers very high-quality video with ultra-low latency and connects directly to NDI networks.

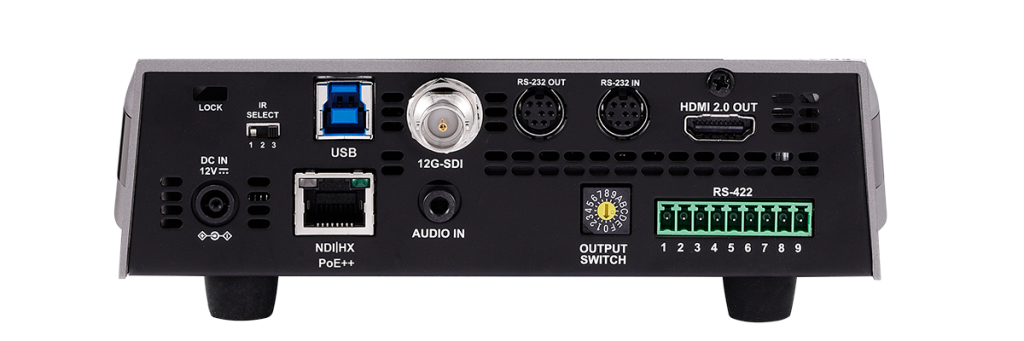

12G-SDI
Lumens VC-A71SN is equipped with an 12G-SDI video output. This port delivers UltraHD at up-to 60 frames a second, meaning it can capture fast motion and deliver smooth video output.
BT.2020/Rec.709
Lumens VC-A71SN supports the BT.2020 color gamut for wide and precise color reproduction. With BT.2020, VC-A71SN will be easy to match other cameras and deliver video output optimized for new generation UltraHD monitors.
Live VR/AR Video Production
VC-A71SN supports the FreeD protocol.
This enables users to work with Virtual Reality and Augmented Reality sets without the need for additional sensors.

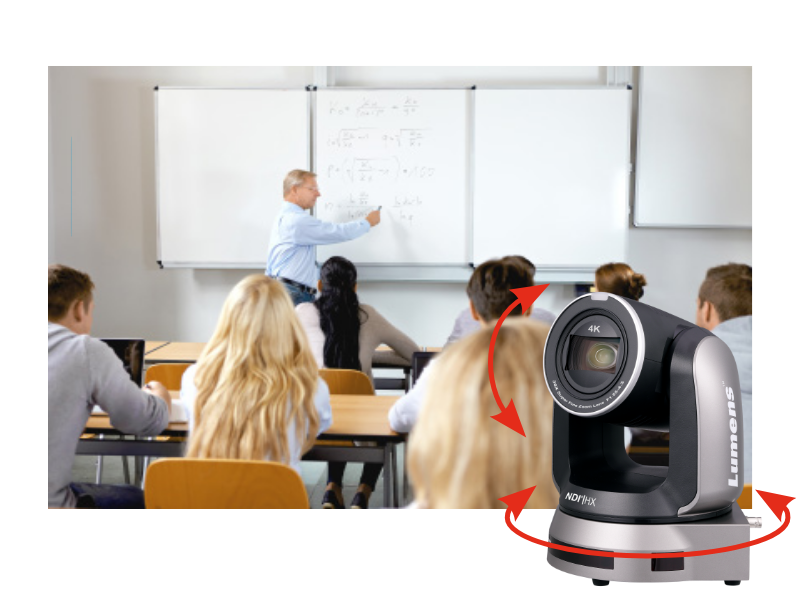

Smooth PTZ Movement
With high-precision motor control and Lumens’ innovative mechanical transmission mechanism, VC-A71SN achieves smooth, high-speed movement without any judder. The speed of movement is fully customizable.
3 year warranty
Lumens offers a 3-year warranty with all its products as standard.
*The warranty policy may be different depending on the sales region, please contact your local salesperson.
Specs Details
Sensor
1/1.8″ 9.17 MP CMOS
Video Format
2160p: 59.94 / 50 / 29.97 / 25
1080p: 59.94 / 50 / 29.97 / 25
1080i: 59.94 / 50
720p: 59.94 / 50
Video Output (HD) Interface
12G-SDI / HDMI 2.0 / Ethernet / USB 3.0
Optical Zoom
30x
Digital Zoom
12x
Horizontal Viewing Angle
63° (Wide) to 3.7° (Tele)
Vertical Viewing Angle
35.4° (Wide) to 2.1° (Tele)
Diagonal Viewing Angle
72.3° (Wide) to 4.2° (Tele)
Aperture
F1.6 ~ F4.8
Focal Length
6.5mm ~ 202mm
Shutter Speed
1/1 ~ 1/10,000 sec
Minimum Object Distance
1.5m (Wide / Tele)
Video S/N Ratio
> 50dB
Minimum Illumination
0.05 lux (F1.6, 50IRE, 30fps)
Focus System
Auto / Manual / Smart AF
Gain Control
Auto / Manual
White Balance
Auto, manual
Exposure Control
Auto / Manual / Smart AE
IQ Sync
Yes
WDR
Yes
3D NR
yes
Image Flip
Yes
Color Space
Standard / BT.2020 / REC.709
AR/VR Systems
FreeD
NDI Genlock
Yes
Tally Light
Yes
Panning Angle
+170 ~ -170°
Panning Speed
300°/sec
Tilting Angle
+90 ~ -30°
Tilting Speed
300°/sec
Preset Positions
256
HDMI / 12G-SDI
2160p 59.94
IP Stream
NDI :
HEVC(H.265) 4K 59.94fps
H.264 640×360 29.97fps
or
RTSP :
HEVC(H.265) 4K 59.94fps
H.264 1080p 59.94fps
H.264 640×360 29.97fps
IP Compression
HEVC / H.264
USB Output
H.264 4K 30fps
MJPEG 1080p 30fps
USB Compression
H.264 / MJPEG
IP Protocol
NDI HX3 / NDI HX2 / RTSP / RTMP / RTMPS / MPEG-TS / SRT
PoE
PoE++ (IEEE802.3bt)
Audio Input
Line In/MIC In , Phone Jack 3.5mm x1
Audio Output
Ethernet / 12G-SDI / HDMI 2.0 / USB 3.0
Compression Format
AAC / G.711 / PCM

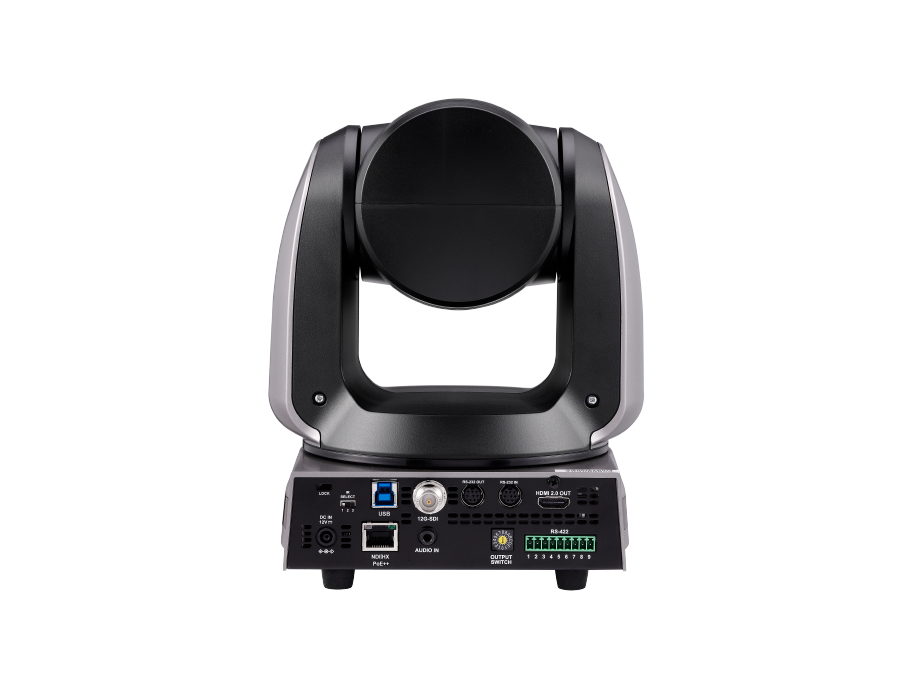

Interface
RS-232 / RS-422 / Ethernet / USB 3.0 / Remote
Protocol
VISCA / VISCAIP / ONVIF / PELCO D /
NDI / UVC
DC In
12V +/- 20%
Power Consumption
PoE : 27.5 W
DC In : 27 W
Weight
6.6 lbs (3 kg
Dimensions (WxHxD)
9.1″ x 7.4″ x 7.4″
(232 x 188 x 189 mm)
