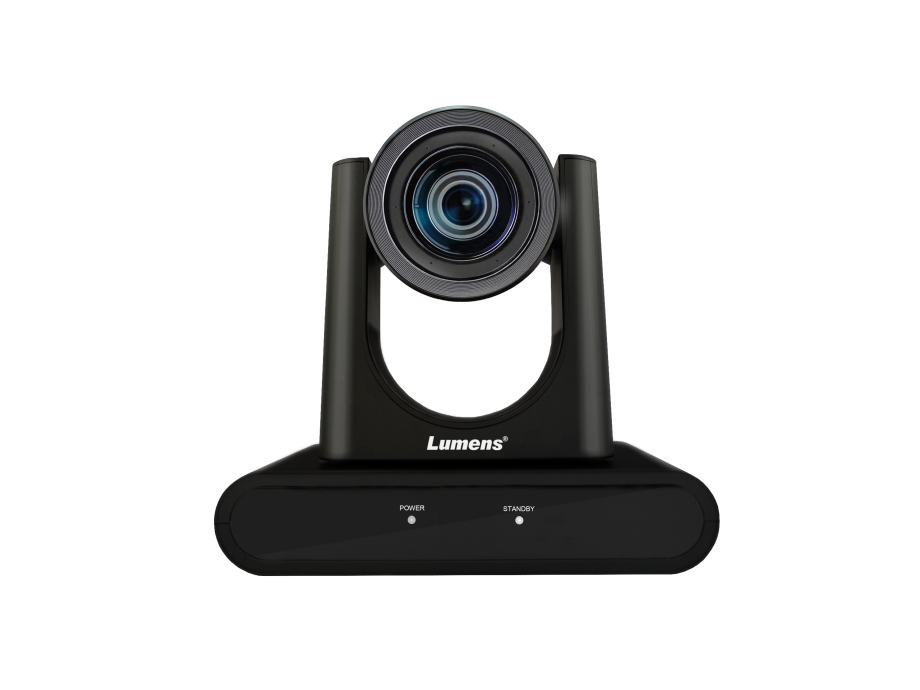

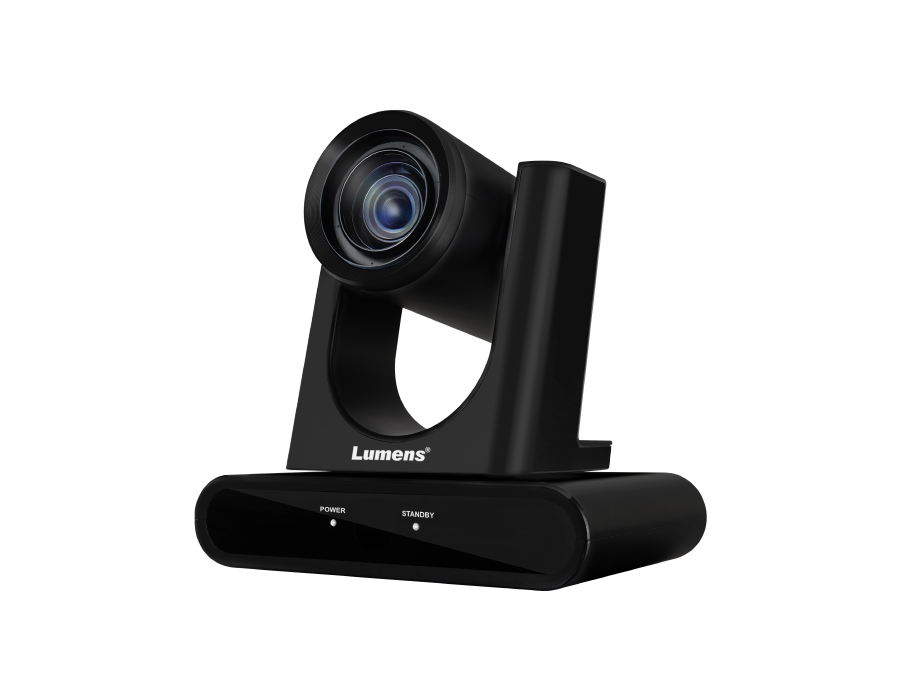

VC-R32
HD IP PTZ Camera

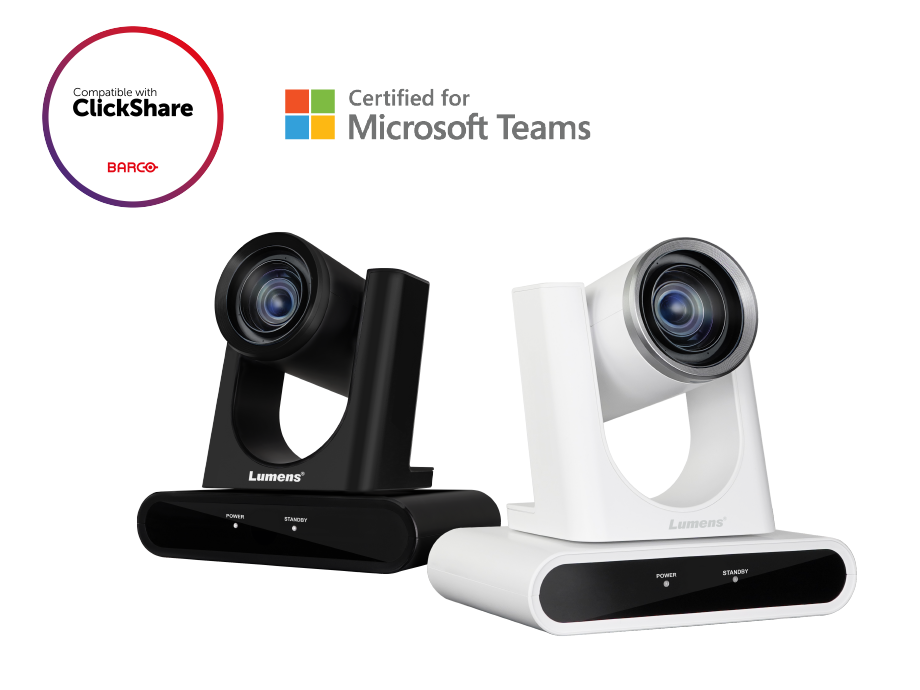

- Certified for Microsoft Teams
- 1080p 60 fps
- Superb value for money
- 12x zoom / 72.5° horizontal field of view
- Simultaneous HDMI, USB and IP streaming output
- Ultra-silent PTZ motors for smooth, accurate movement
- Power, video, audio, and control over a single Ethernet cable
- Wide-angle lens for flexible framing in small to large rooms
- Support for RS-422 and RS-232 control protocols
- Remote configuration and firmware upgrade via web UI
- Mount upright or inverted with standard mounting accessories
- key features
- Specification
Specs Details
Sensor
1/2.8″ 2.16M
Video Format
1080p60
1080p50
1080p30
1080p25
720p60
720p50
Video Output (HD) Interface
HDMI / Ethernet / USB 3.0
Optical Zoom
12x
Digital Zoom
12x
Horizontal Viewing Angle
72.5°
Vertical Viewing Angle
40.8°
Diagonal Viewing Angle
83.2°
Aperture
F1.8 ~ F3.0
Focal Length
f=4.1mm ~ 47.8mm
Shutter Speed
1/25 ~ 1/10,000 sec
Minimum Object Distance
Wide = 1000mm , Tele = 1500mm
Video S/N Ratio
> 50dB
Minimum Illumination
1 lux (F1.8, 50IRE, 30fps)
Focus System
Auto, manual
Gain Control
Auto / Manual
White Balance
Auto, manual
Exposure Control
Auto, manual
WDR
Yes
3D NR
FreeD
Image Flip
Yes
Auto Framing
yes
Panning Angle
+170 ~ -170°
Panning Speed
0.2~120°/sec
Tilting Angle
+90 ~ -30°
Tilting Speed
0.2~80°/sec
Preset Positions
256
HDMI
1080p 60
IP Stream
Triple streaming structure:
First : H.264 1080p 60
Second : H.264 720p 30
Webpage : H.264 720p 30
IP Compression
H.264
USB Output
1080p60
USB Compression
MJPEG
IP Protocol
RTSP / RTMP / RTMPS / SRT
PoE
Yes(IEEE802.3af)
Audio Input
Line In/MIC In
Audio Output
Ethernet / USB 3.0 / HDMI
Audio Compression Format
IP : AAC
USB : PCM

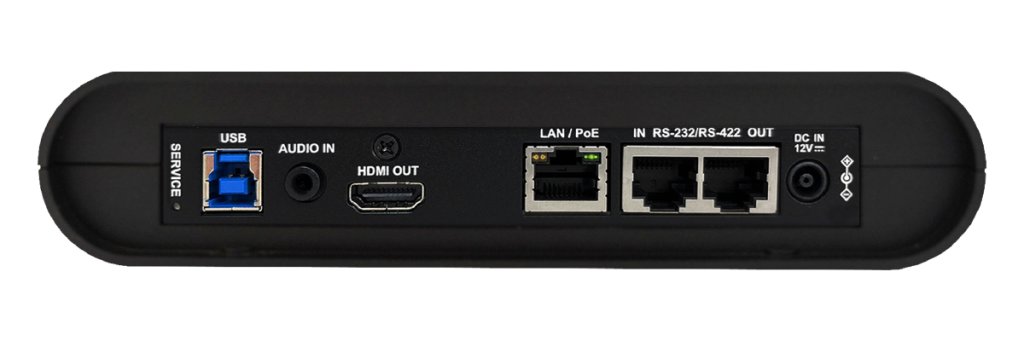

Interface
RS-232/422（RJ-45) / Ethernet / USB 3.0
Protocol
VISCA / ONVIF
UVC
Yes
UAC
Yes
DC In
12V +/- 20%
Power Consumption
PoE: 9W
DC In: 8W

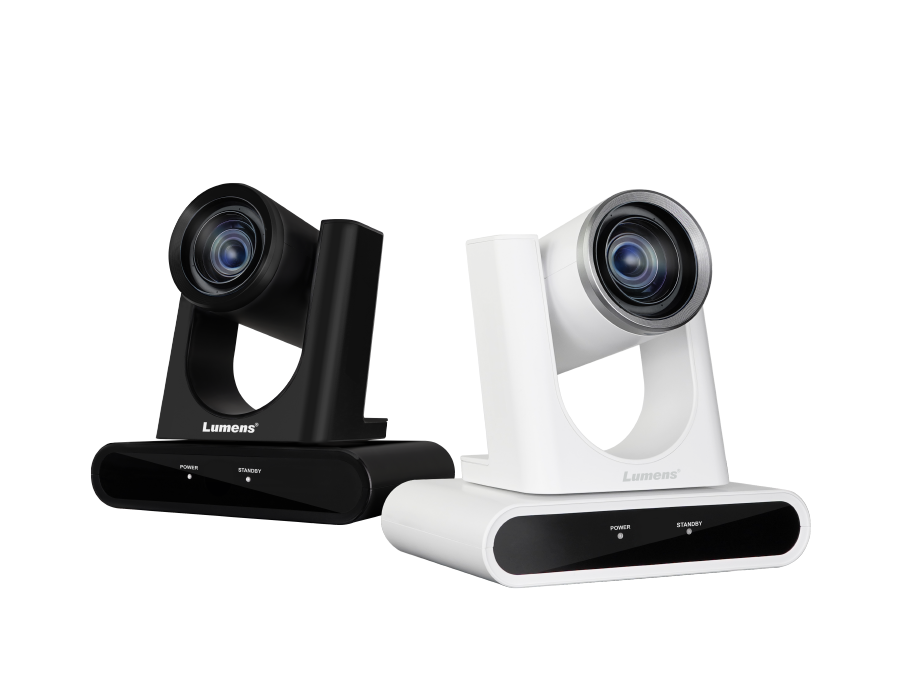

Body Color
Black / White
Weight
3.1lbs (1.4 kg)
Dimension
7.5″ x 7.3″ x 5.4″
(190 ×185 ×138 mm)
