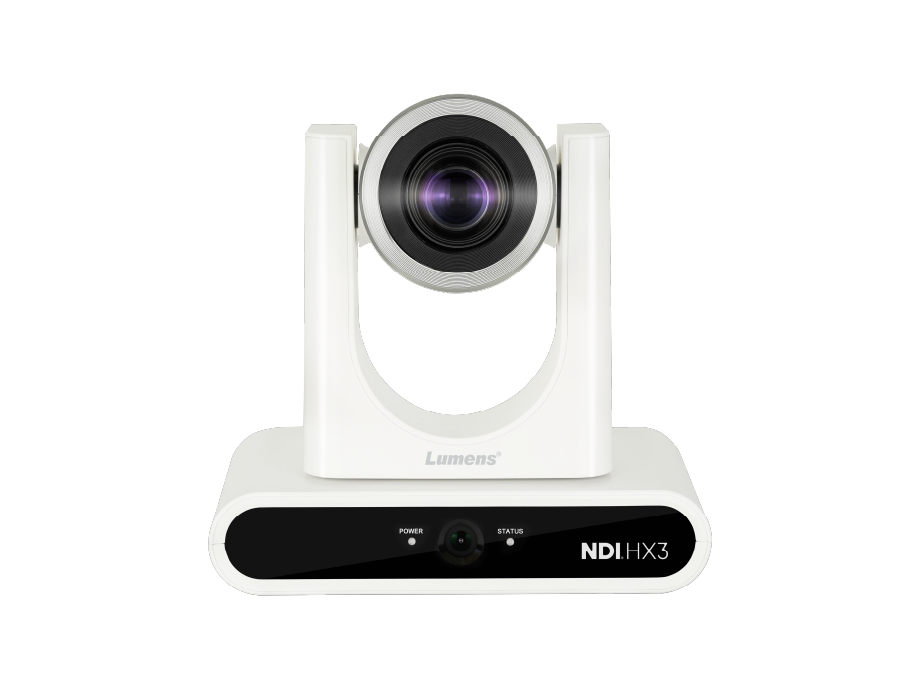

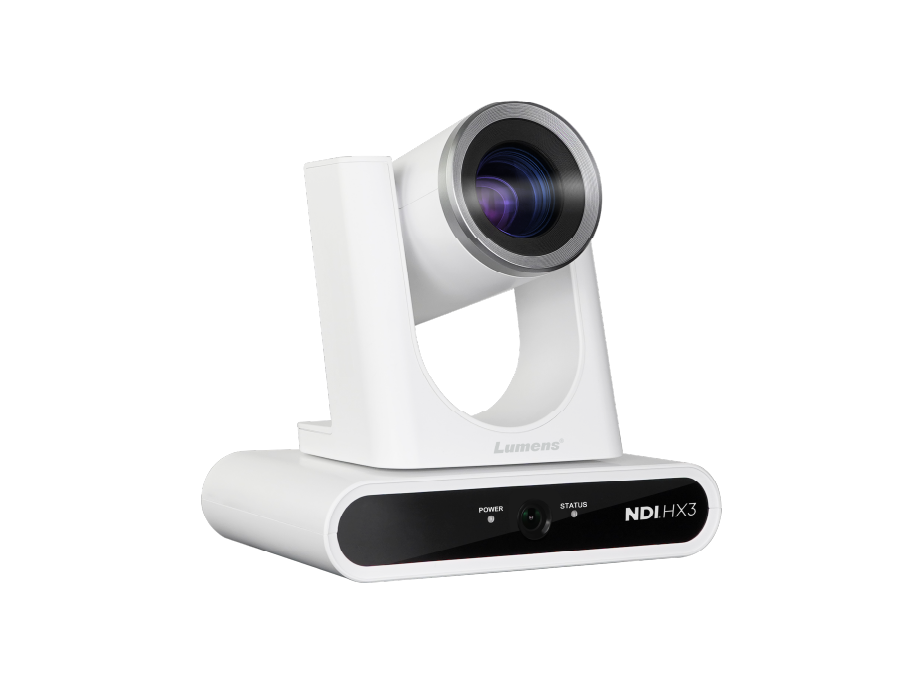

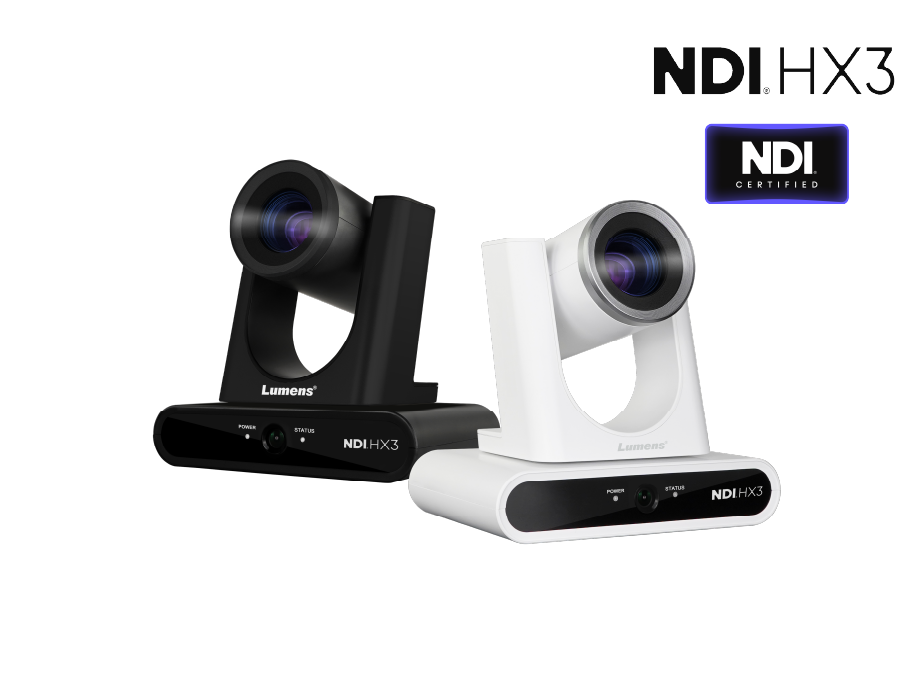

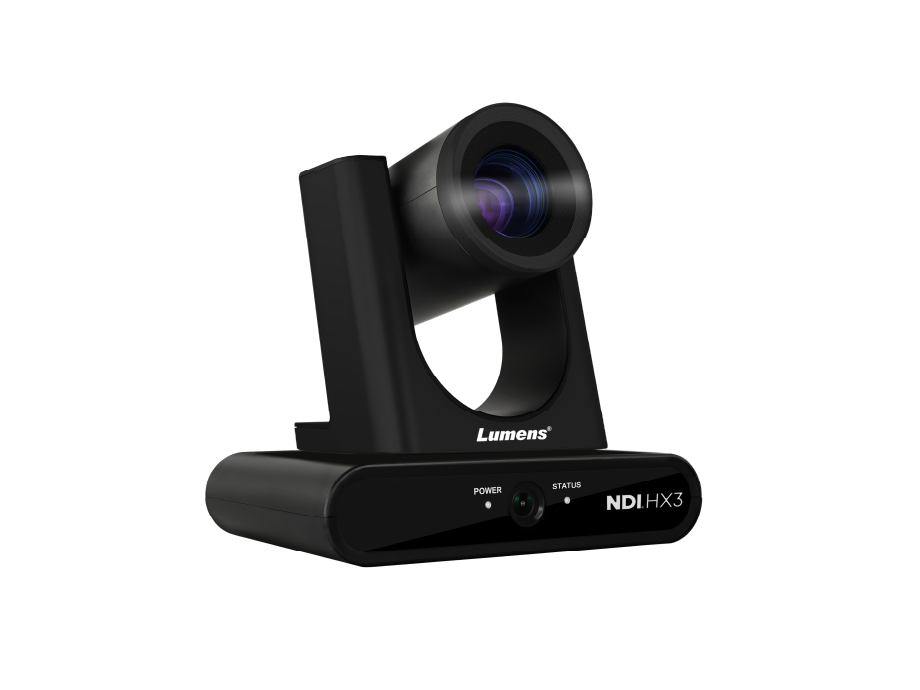

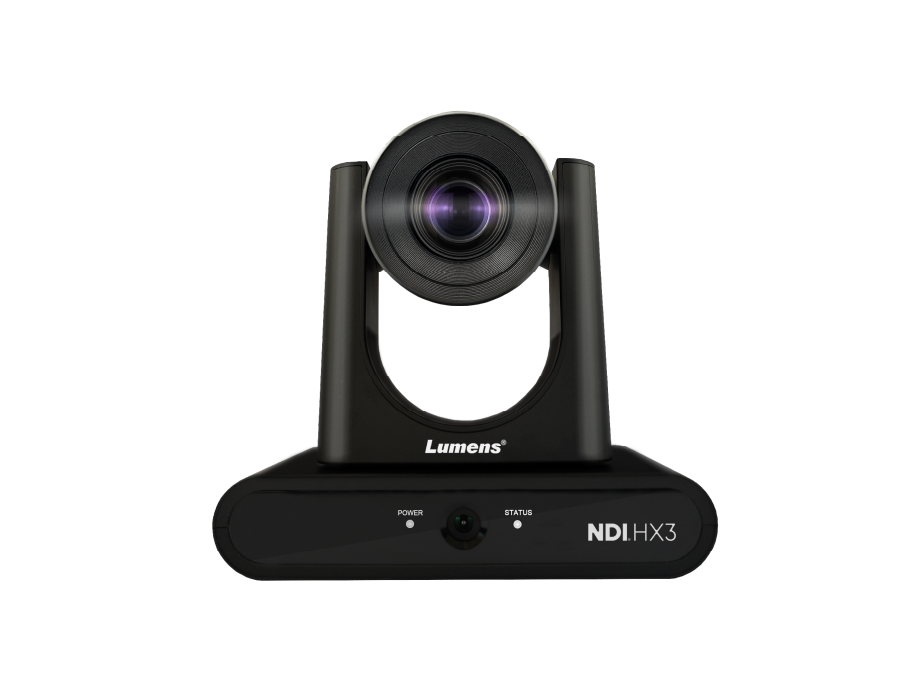

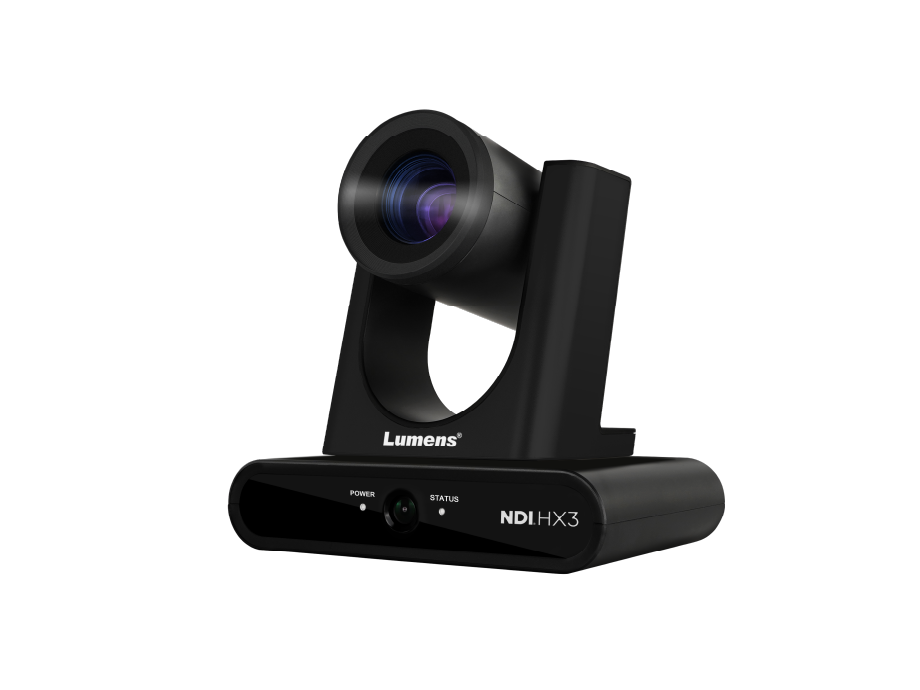

VC-TR41N
AI-Powered NDI HX3 Auto-Tracking Camera
- AI-powered human detection with auto-framing and motion-tracking
- NDI HX3, RTSP, RTMP, SRT streaming support
- Simultaneous output via HDMI, 3G-SDI, USB, and IP
- 1080p 60fps video with 20x optical zoom
- Ultra-silent PTZ motors for smooth, accurate movement
- PoE for power, video, audio, and control over a single Ethernet cable
- Wide-angle lens for flexible framing in small to large rooms
- Preset position support for quick recall of camera viewpoints
- Remote configuration and firmware upgrade via web UI
- Mount upright or inverted with standard mounting accessories
- key features
- Specification
Specs Details
PTZ Sensor
1/2.8″ 2.16M
PTZ Video Format
1080p: 60 / 50 / 30 / 25
720p: 60 / 50
Video Output (HD) Interface
HDMI / Ethernet / 3G-SDI / USB 3.0
Optical Zoom
20x
Digital Zoom
12x
PTZ Horizontal Viewing Angle
58.7°
PTZ Vertical Viewing Angle
33°
Diagonal Viewing Angle
67.3°
Aperture
F1.6 ~ F2.8
Focal Length
4.9mm ~ 94mm
Shutter Speed
1/25 ~ 1/10,000 sec
Minimum Object Distance
500mm
Video S/N Ratio
> 50dB
Minimum Illumination
1 lux (F1.6, 50IRE, 30fps)
Focus System
Auto / Manual / Smart AF
Gain Control
Auto / Manual
White Balance
Auto, manual
Exposure Control
Auto, manual
WDR
Yes
3D NR
Yes
Adaptive LED Mode
Yes
Image Flip
yes
AR/VR systems
FreeD
Auto Tracking
Everywhere / Stage / Partition / Audience Tracking
Auto Framing
Everywhere / Partition
Gesture Control
Yes
Panoramic Sensor
1/2.8″ 2MP CMOS
Panoramic Video Format
720p 30 / 25
Panoramic Horizontal Viewing Angle
87°
Panoramic Vertical Viewing Angle
49°
Panning Angle
+170 ~ -170°
Panning Speed
0.2~120°/sec
Tilting Angle
+90 ~ -30°
Tilting Speed
0.2~80°/sec
Preset Positions
256
HDMI/3G-SDI
1080p 60
IP Stream
PTZ Camera
Main : 1080p 60
Second : 720p 30
Panoramic Camera : 720p30
IP Compression
H.264
USB Output
1080p 30 / 25
USB Compression
MJPEG
IP Protocol
NDI HX3 / NDI HX2 / HTTP / RTSP / RTMP / RTMPS / SRT
PoE
Yes(IEEE802.3af)
Audio Input
Line In / MIC In
Audio Output
Ethernet / USB 3.0 / HDMI / SDI
Audio Compression Format
AAC / PCM

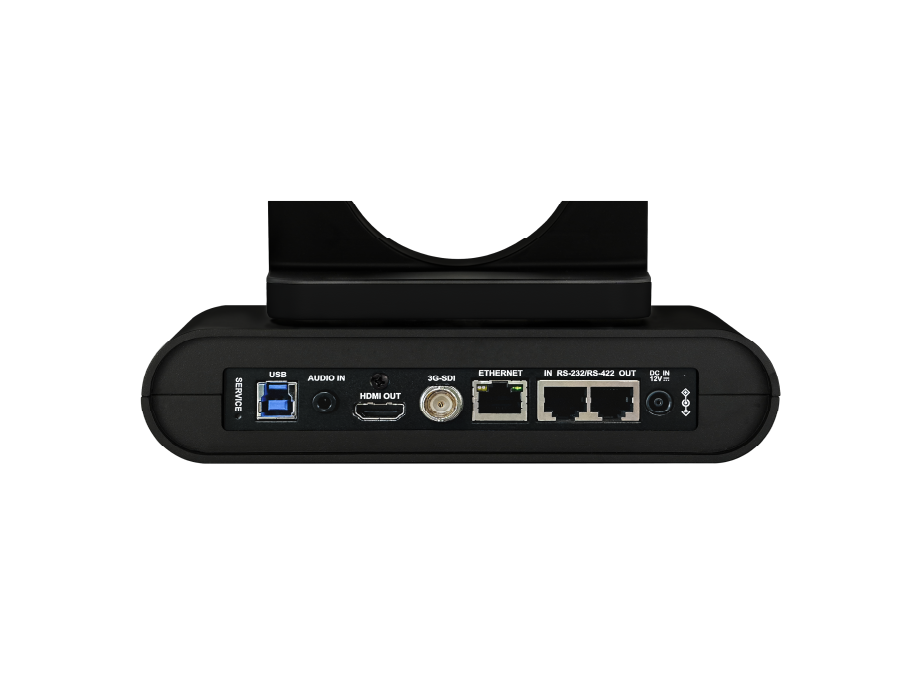

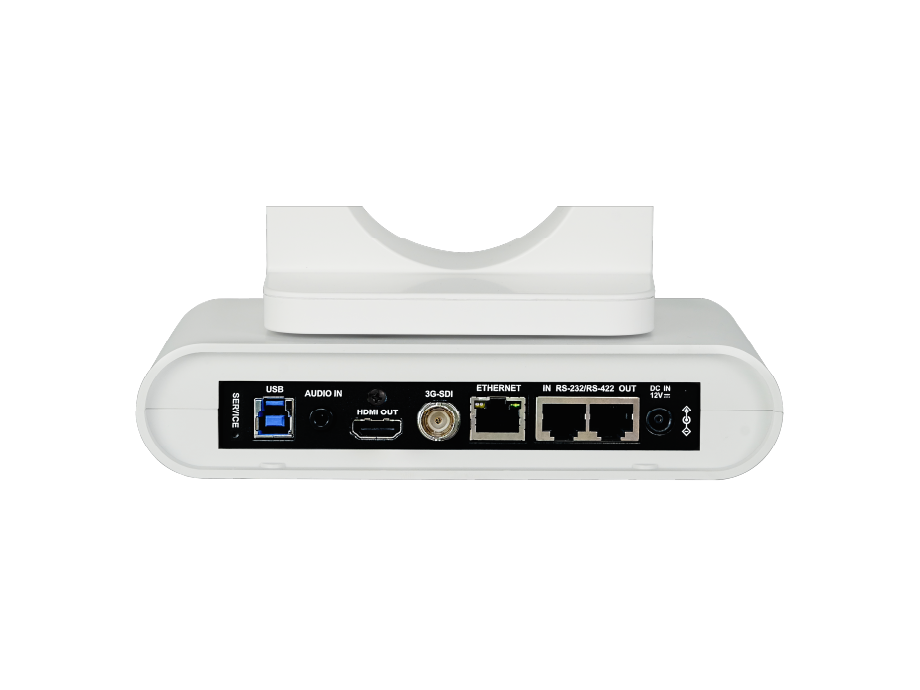

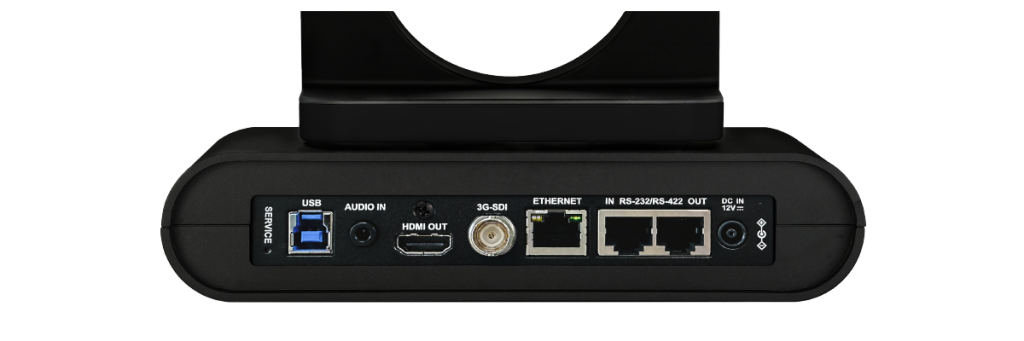

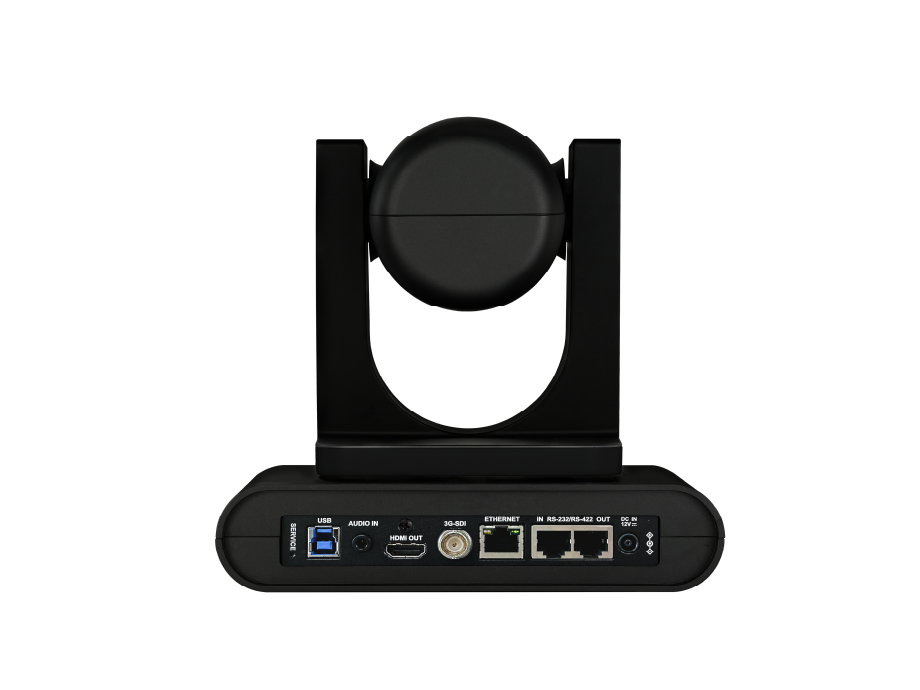

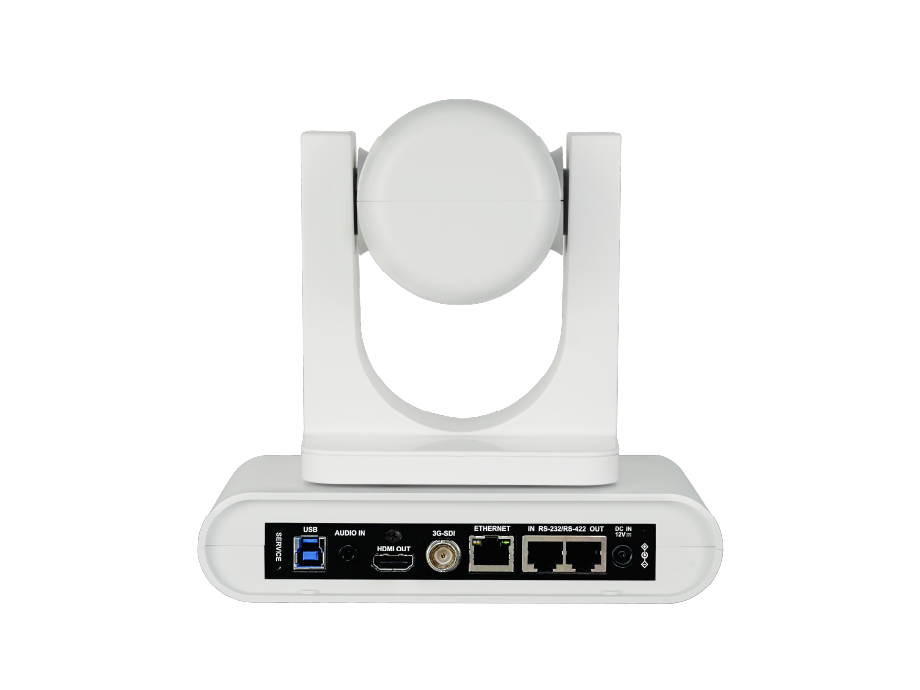

Interface
RS-232/422（RJ-45) / Ethernet / USB 3.0
Protocol
VISCA / ONVIF / UVC / NDI
UVC
Yes
UAC
Yes
DC In
12V +/- 20%
Power consumption
PoE: 11W
DC In: 10W

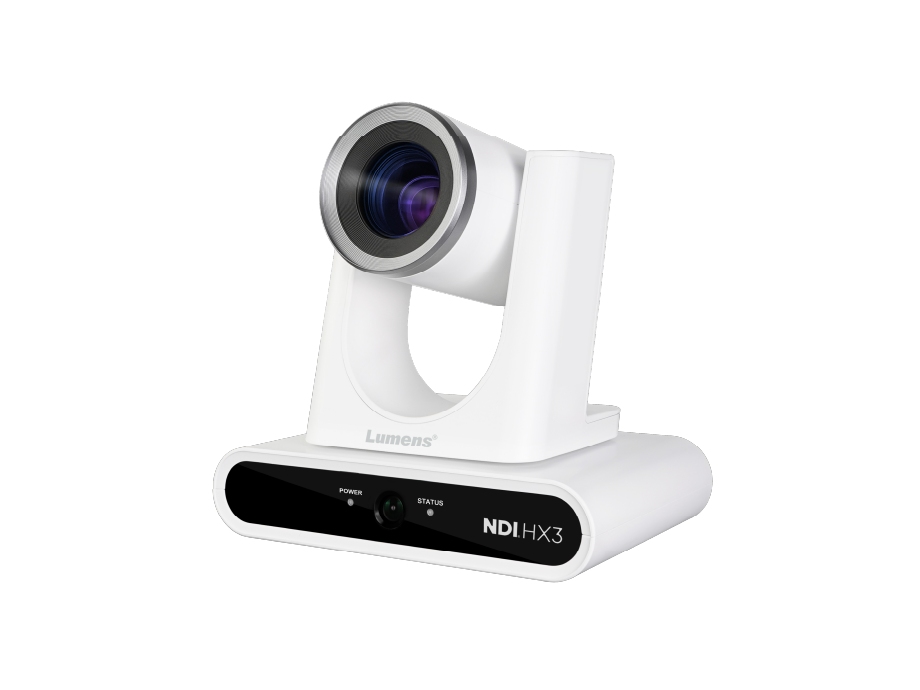

Body Color
Black / White
Weight
3.3lbs (1.5 kg)
Dimension
7.5″ x 7.3″ x 5.4″
(190 ×185 ×138 mm)
