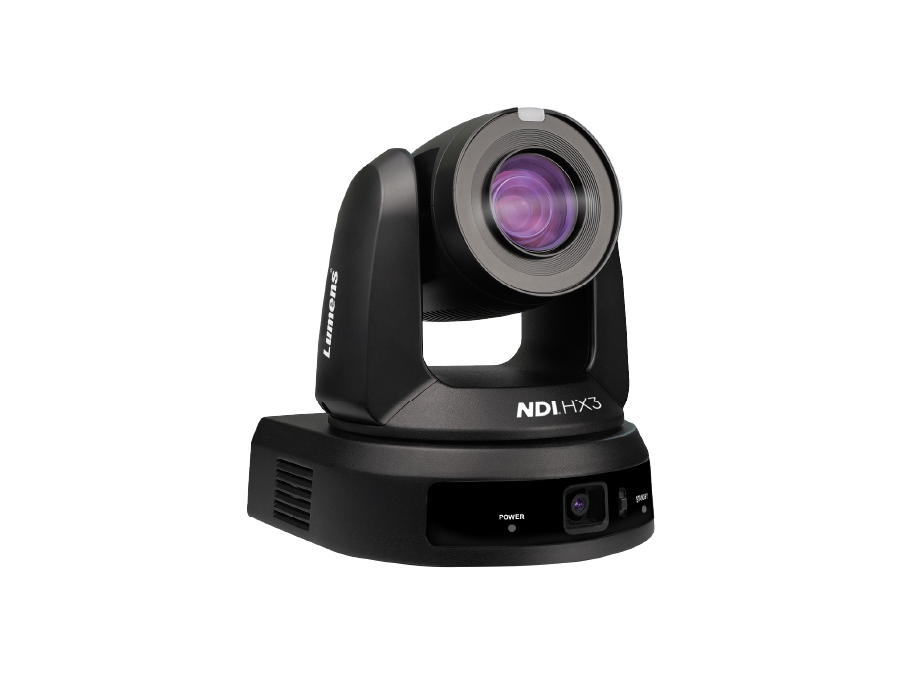

VC-TR61N
4K NDI HX3 AI Auto-Tracking 30x Zoom PTZ Camera
- 4K 60 Dual stream output
- 30x Zoom
- NDI HX3 Support
- AI-powered motion tracking
- HDMI, Ethernet, 3G-SDI, USB output
- Optional Accessories
- Specification

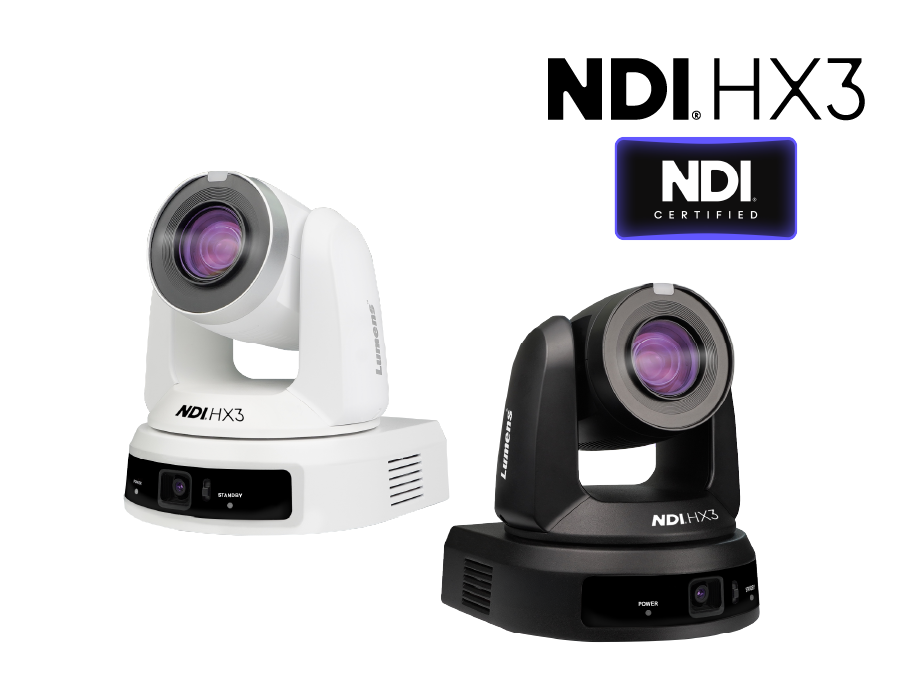

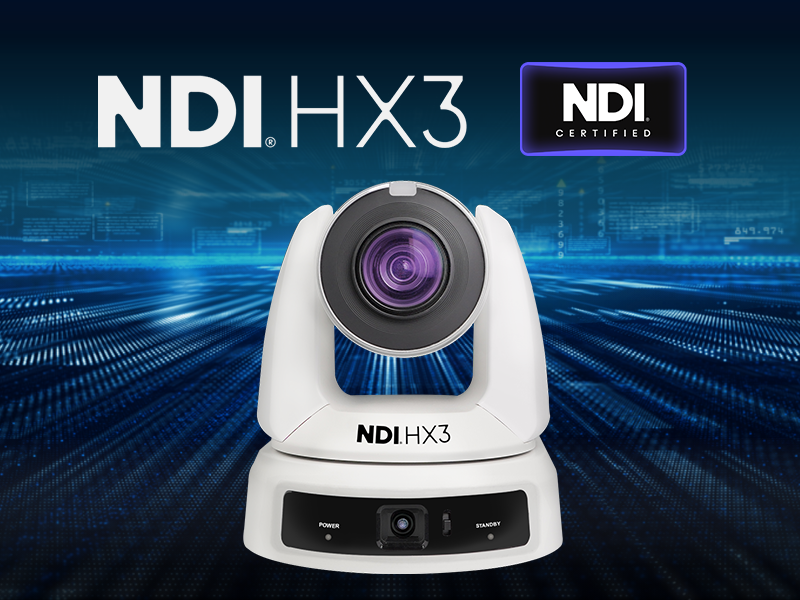

NDI Technology
VC-TR61N supports the latest version of the NDI protocol, NDI HX3. It delivers very high-quality video with ultra-low latency and connects directly to NDI networks.

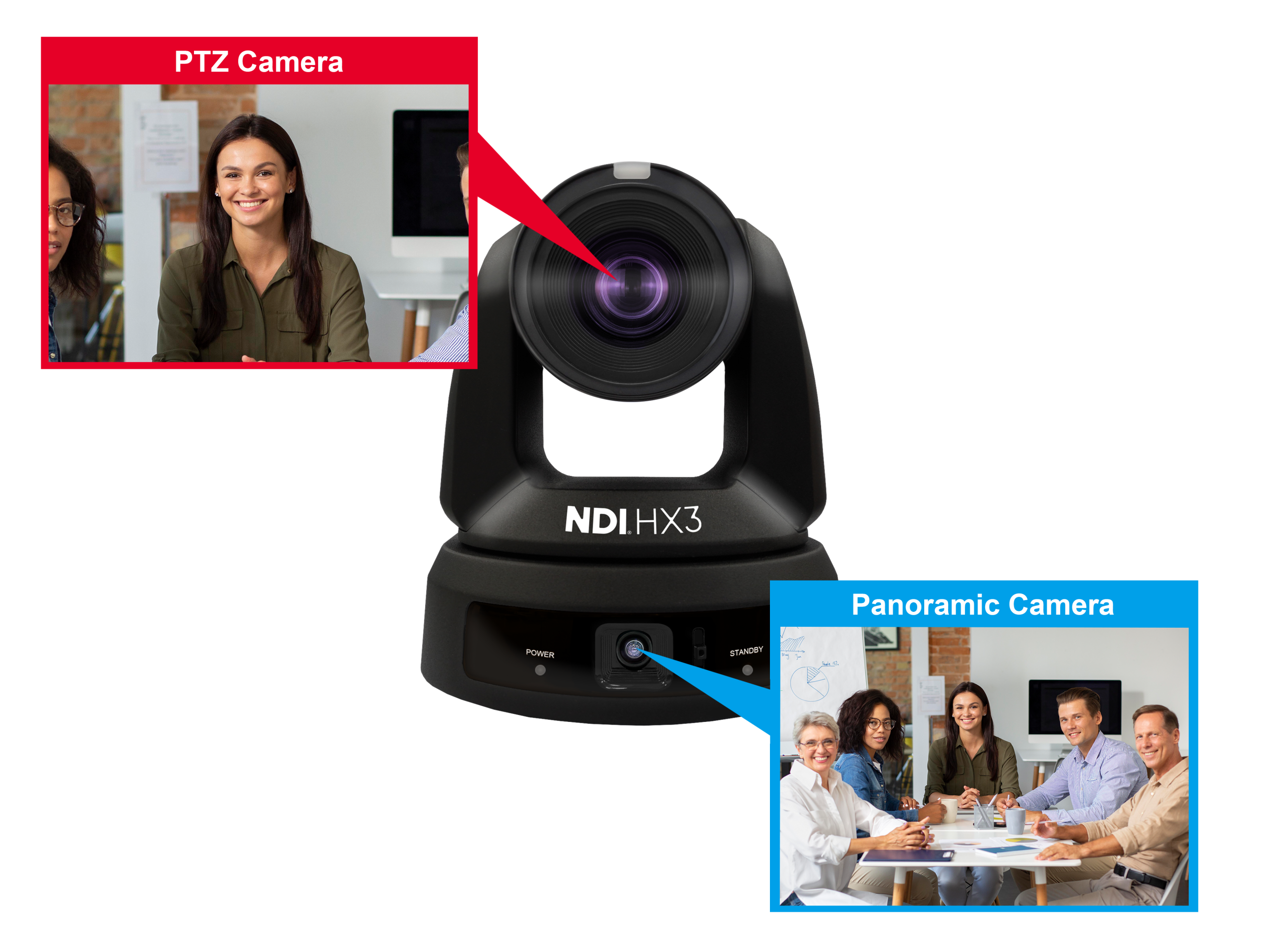

4K Dual Video Outputs
For accurate tracking, VC-TR61N features dual UltraHD cameras – a main robotic head with optical zoom and a panoramic camera with an ultra-wide viewing angle. Each camera generates an independent 4K IP output for live streaming, AV transmission or multi-channel video production.

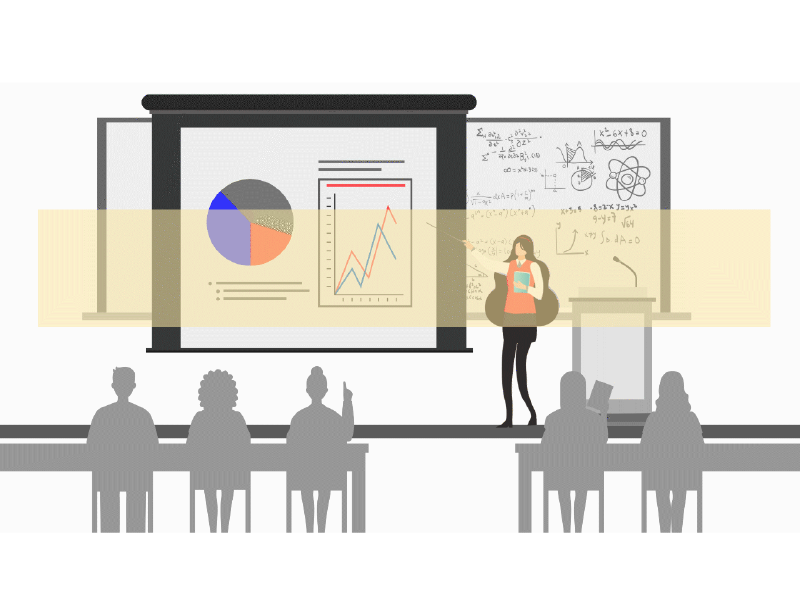

Stage Tracking and Everywhere Tracking Modes
Lumens advanced tracking algorithms make the VC-TR61N suitable for use in presentations, conferences, houses of worship and education. Delivering reliable and smooth results, the camera includes mode selection to set tracking areas, exclusion zones and camera movement.

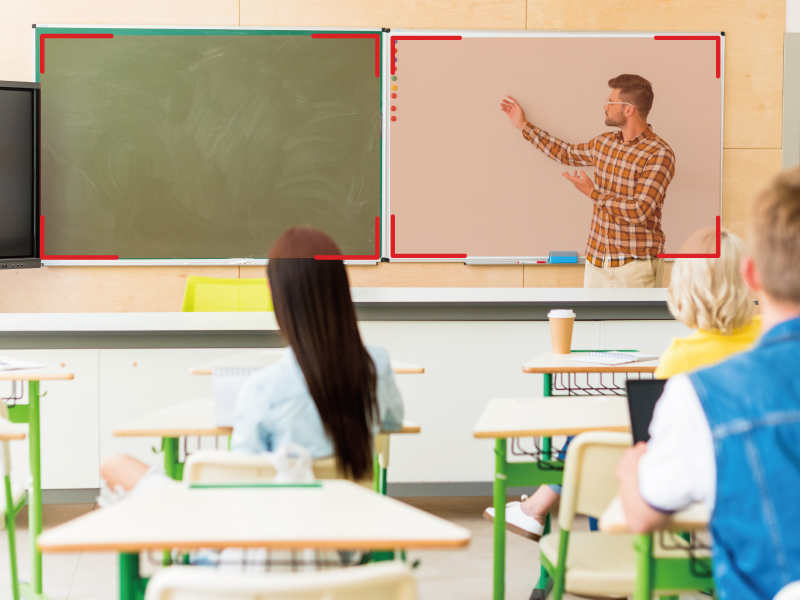

Partition Tracking Mode
In Partition Tracking Mode, the operator can program camera actions depending on the location of the subject within the tracking area. This can include triggering a particular zoom angle to focus the audience’s attention on the presenter or a wider shot to frame both the speaker and a whiteboard.

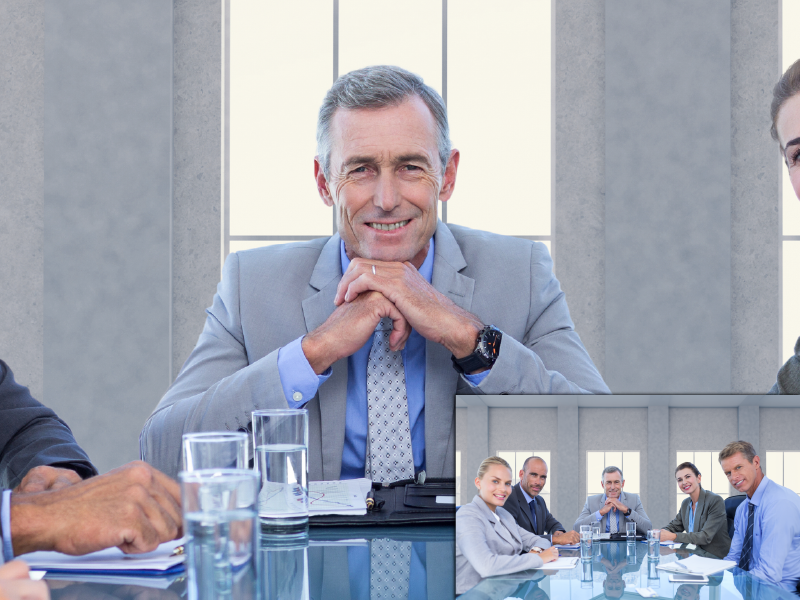

Picture-in-Picture (PIP) Output
As a 2-camera unit, VC-TR61N outputs dual independent IP streams. A simple menu setting also enables it to create a composite picture-in-picture output (via HDMI and USB). The user can easily define the position and size of the inset picture via the web interface.
3 year warranty
Lumens offers a 3-year warranty with all its products as standard.
*The warranty policy may be different depending on the sales region, please contact your local salesperson.
Specs Details
Sensor
1/1.8″ 8.48M
Video Format
2160p : 59.94 / 50 / 29.97 / 25
1080p : 59.94 / 50 / 29.97 / 25
720p : 59.94 / 50 / 29.97 / 25
1080i : 59.94 / 50
Video Output (HD) Interface
HDMI / Ethernet / 3G-SDI / USB
Zoom
30x
Digital Zoom
8x *
*Digital Zoom only works with HDMI/SDI at 1080p/720p resolution
Horizontal Viewing Angle
59.2°
Vertical Viewing Angle
33.3°
Diagonal Viewing Angle
67.9°
Aperture
F1.6 ~ F5.4
Focal Length
7.1 ~ 213 mm
Shutter Speed
1/25 ~ 1/10,000 sec
Minimum Object Distance
Tele:1.5m Wide:1m
Video S/N Ratio
> 50dB
Minimum Illumination
0.5Lux (F1.6, AGC ON)
Focus System
Auto, manual
Gain Control
Auto, manual
White Balance
Auto, manual
Exposure Control
Auto, manual
WDR
Yes
3D NR
Yes
Image Flip
yes
PIP
Yes
Auto Tracking
yes
Auto Framing
yes
Sensor
1/2.8″ 8.6M
Video Format
2160p : 60 / 50
2160p : 30 / 25
1080p : 60 / 50 / 30 / 25
Horizontal Viewing Angle
85.1°
Aperture
F2.0
Focal Length
3mm
Panning Angle
+170 ~ -170°
Panning Speed
0.1°~100°/sec
Tilting Angle
+90 ~ -30°
Tilting Speed
0.1°~ 60°/sec
Preset Positions
256
HDMI/3G-SDI
HDMI
PTZ Camera : 2160p60
Panoramic : 2160p60
3G-SDI
PTZ Camera : 1080p 60
IP Stream
RTSP / RTMP / RTMPS / SRT
PTZ Camera
Stream 1 : 2160p 60 fps
Stream 2 : 720p 30 fps
Panoramic Camera : 2160p 60fps
NDI HX
PTZ Camera
Main : 2160p 60fps
Sub : 640x360p 30fps
Panoramic Camera : 2160p 60fps
IP Compression
H.264 / HEVC(H.265)
USB Output
2160p30
USB Compression
H.265(HEVC) / H.264 / MJPEG /
YUV2 / NV12
IP Protocol
NDI HX3 / NDI HX2 / RTSP / RTMP / RTMPS / SRT
PoE
PoE+ (IEEE802.3at)
Audio Input
Line In
Audio Output
Ethernet / USB / HDMI / SDI
Audio Compression Format
AAC / PCM

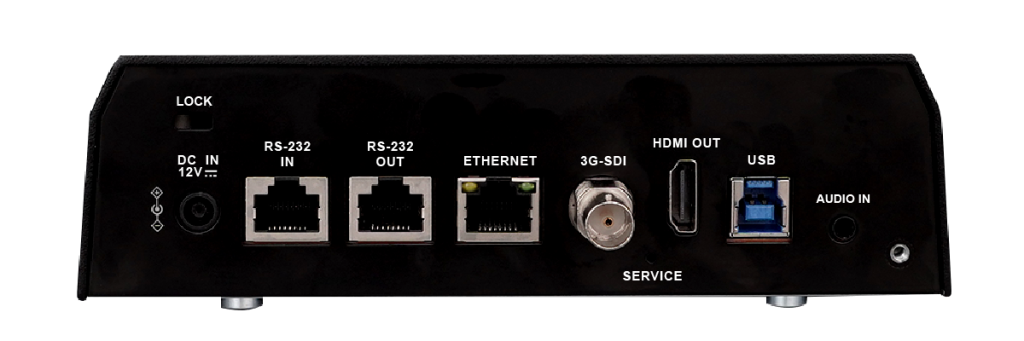

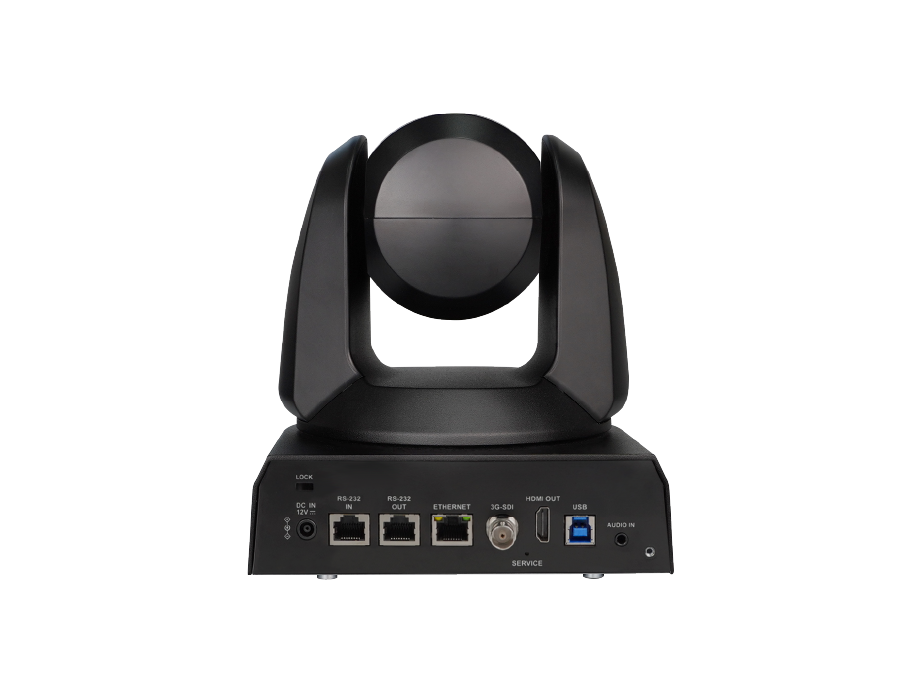

Interface
RS-232 / Ethernet / USB / Remote
Protocol
VISCA / ONVIF / NDI
UVC
Yes
UAC
Yes
DC In
12V +/- 20%
Power consumption
PoE: 26W
DC In: 25W
Body Color
Black / White
Weight
4.4 lbs (2 kg)
Dimensions
6.9″ x 7.8″ x 7.3″
(174 x 197 x 187 mm)
