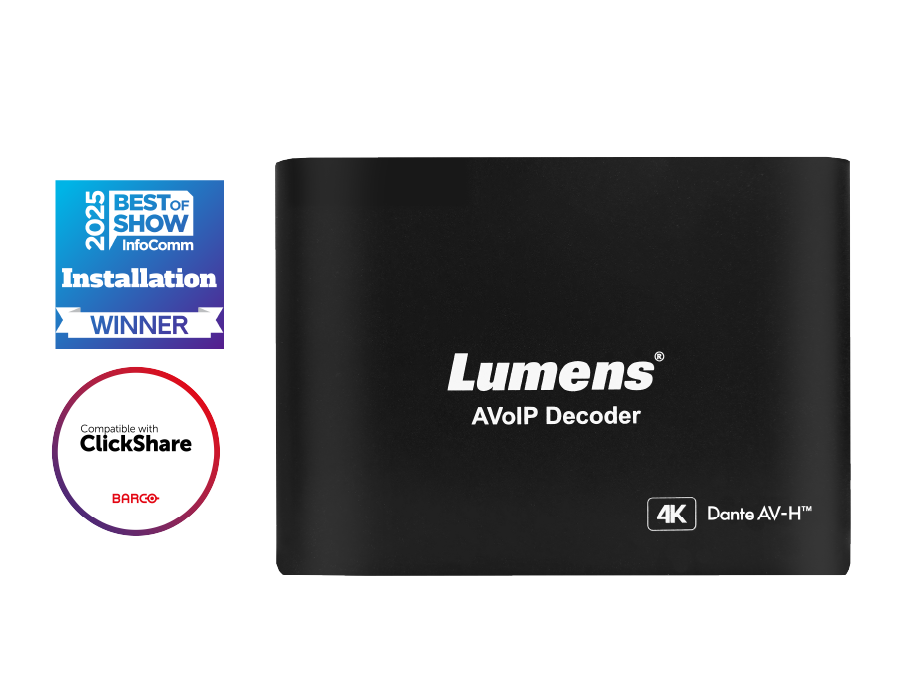

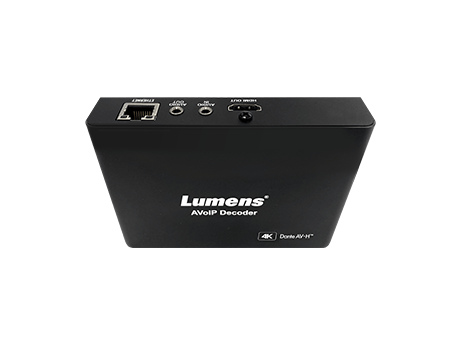

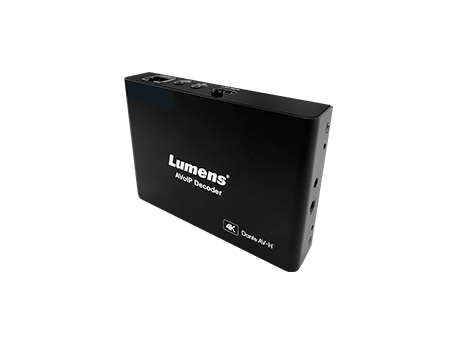

OIP-N60D Dante AV-H
AV over IP and Dante AV-H 4K OIP Bridge
Decodes Dante AV-H & RTSP with HDMI and USB out
Supports bi-directional Dante audio
Delivers low latency 4K video
Long-distance IP-based AV transmission
Supports PoE and USB power for easy installation
- key features
- Specification
Dante AV-H Enabled
With Dante AV-H, all video and audio routing and configuration is managed by Dante applications. This provides a single platform to route, configure and control both audio and video signals and devices. Dante Domain Manager adds system alerts, user access control, remote management, and a control API.

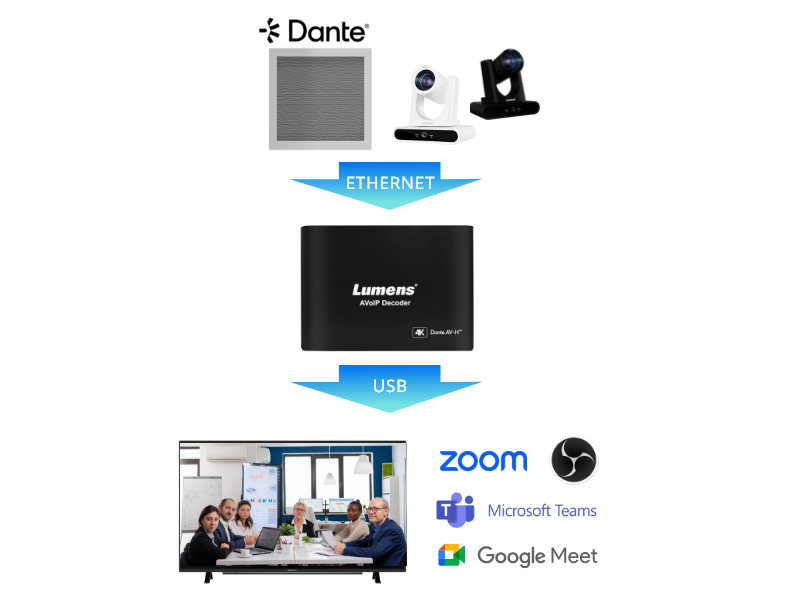

IP Video to USB Conversion
OIP-N60D Dante AV-H encodes IP video streams from RTSP and Dante AV-H to UVC/UAC-compliant USB for use with video conferencing platforms including Teams and Zoom.

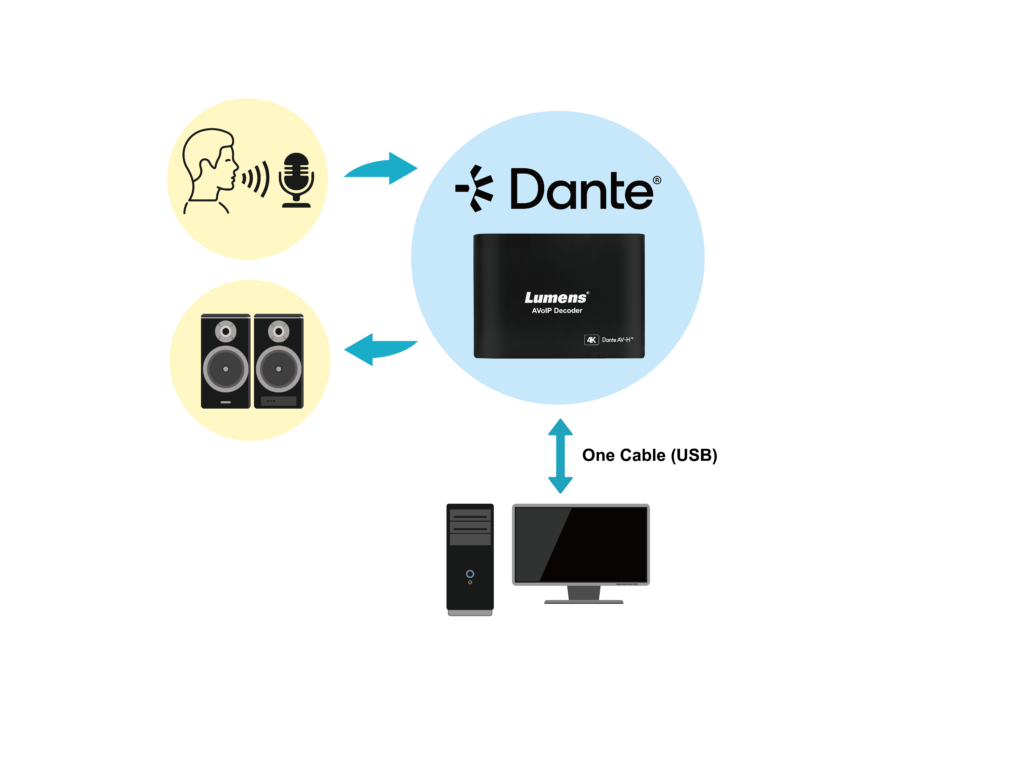

Bi-directional Dante Audio
OIP-N60D Dante AV-H supports bi-directional Dante Audio with output to USB. This integrates the device with Dante microphones, DSPs and speakers making it the ideal companion for hybrid meeting rooms.

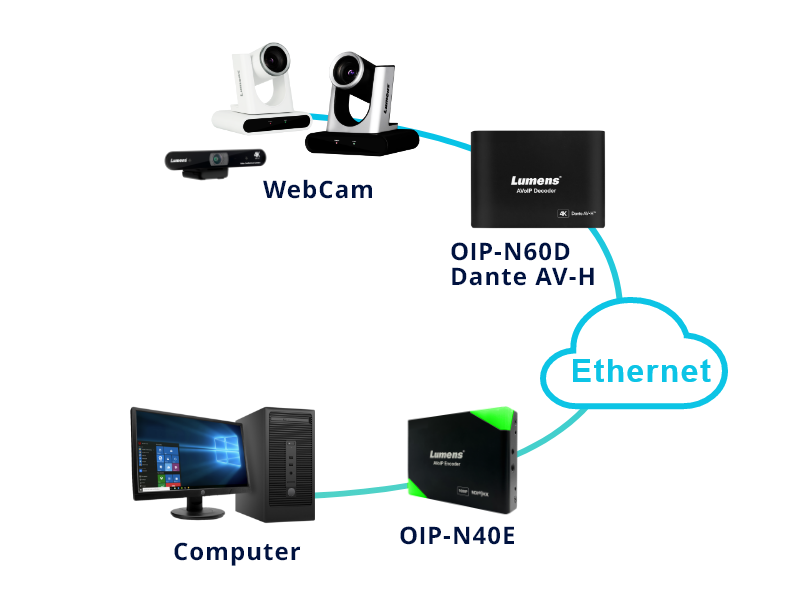

USB Webcam Extension
OIP-N60D Dante AV-H transmits webcams over your IP network for quick and easy AV integration. The signal is decoded by the OIP-N40E for output to USB.
3 year warranty
Lumens offers a 3-year warranty with all its products as standard.
*The warranty policy may be different depending on the sales region, please contact your local salesperson.
MORE DETAILS

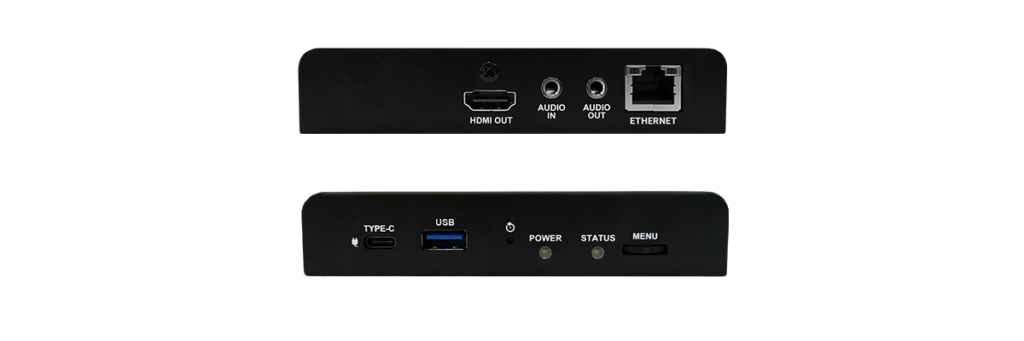

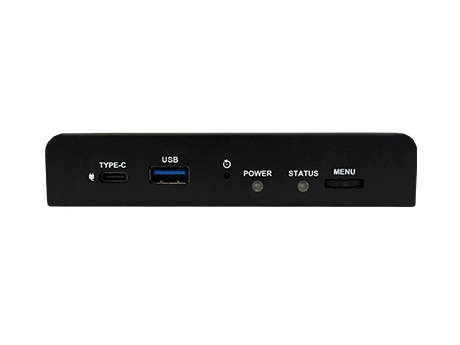

USB Device
Type-C x1

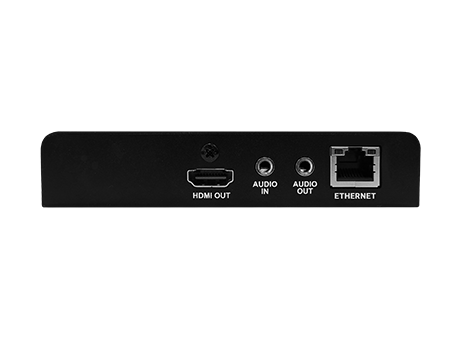

HDMI Output
HDMI 2.0 x1
USB Host
Type-A x1
(Support USB webcam)
Audio Input
Line In/MIC In ,3.5mm x1
Audio Output
Line Out, 3.5mm x1
Ethernet
GbE LAN (RJ-45) x1

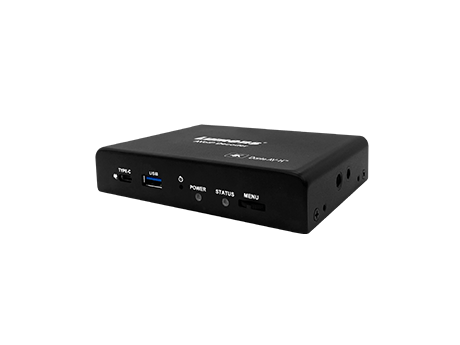

Menu Button
Yes
LED Indicator
Power light
Status Connection light
Reset Pin
Yes
Decoding capability
Up to 2160p60
Video Decoding
H.264 / HEVC(H.265）
IP Protocol
RTSP / Dante AV-H
Video Encoding
MJPEG
Audio Decoding
Yes
Audio Encoding
Yes
IEEE 802.1X
Yes
HTTP Authentication
Digest / Basic / Off
PoE
PoE (IEEE802.3af)
Management
OSD / Web
USB Webcam Extension
Yes
USB Speakerphone Extension
Yes
IP Stream to USB (As webcam)
Yes
UVC
Yes
UAC
Yes
Audio Routing
Yes
PIP / PBP
Yes
Video Wall
max : 3×3
CEC
Yes
Power
PoE / USB
Power consumption
PoE : 11 W
USB : 10 W
Operating Temperature
0°C ~ 40°C
Operating Humidity
20~80%, non-condensing
Storage Temperature
-20°C ~ 60°C
Weight
350g
Dimensions (W×H×D)
Case Only: 125 x 89 x 25 mm
