VC-TR60A
4K Dual Lens Speaker Tracking Camera
Dual Lens Camera with 12x Optical Zoom
Smart Speaker Tracking with integrated voice sensors
Picture in Picture Function
Motion-detect and auto-tracking
HDMI, Ethernet, and USB simultaneous output
- Optional Accessories
- Specification
Intelligent Speaker Tracking
VC-TR60A incorporates an array of directional sound sensors that detect the location of active human voices. The camera head moves and zooms to shoot the current speaker, re-framing as other voices enter the discussion. VC-TR60A supports a reference audio input (USB or line in). This eliminates remote side audio interference, ensuring precise and reliable speaker tracking of speakers within the room.
AI Motion Tracking
VC-TR60A features sophisticated auto-tracking and framing modes. Its intelligent human detection algorithms deliver smooth tracking for conferences, presentations, meeting rooms, classrooms and studios.
PIP Output
VC-TR60A can combine the two video images in a picture-in-picture display with output over HDMI and USB. This allows the audience to watch a composite video that incorporates both the wide-angle view and the tight shot. This function can be activated independently, or at the same time as running motion or speaker tracking.
Dual Video Output
VC-TR60A generates two video streams from its panoramic fixed camera and the robotic zoom head. These can be delivered over IP into a media processor, IP-based production software or a lecture capture system to provide two camera angles from a single unit.

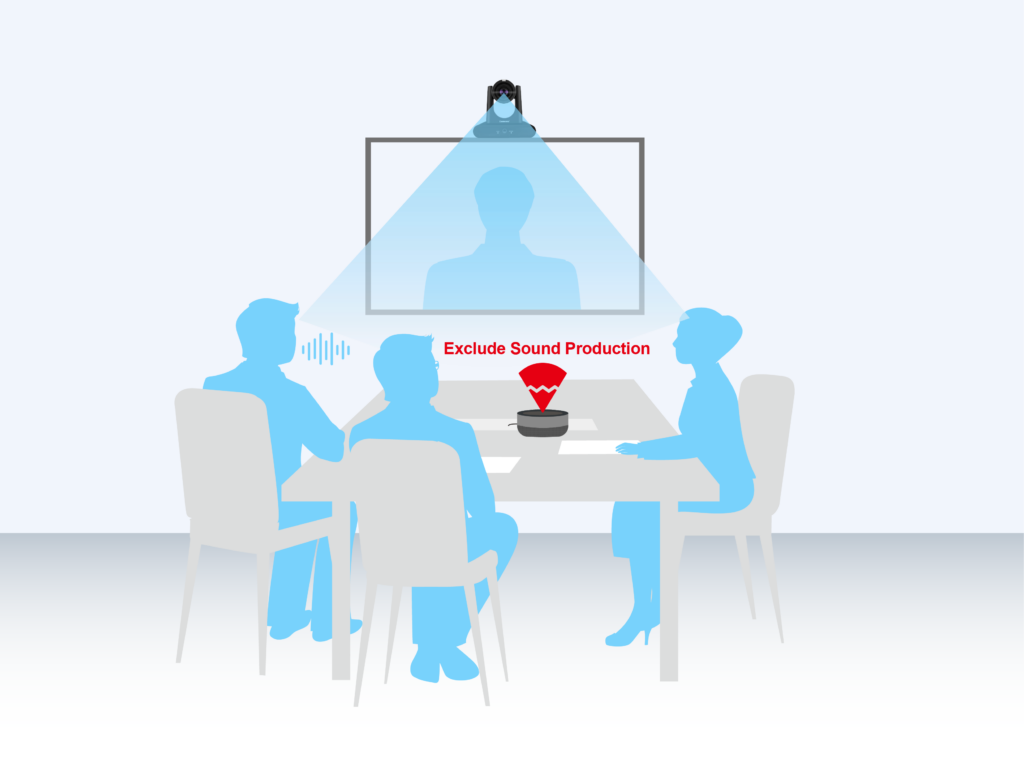

USB Audio Reference Line In
Attach a USB speakerphone directly to the VC-TR60A for single cable connection to your MTR or laptop. In speaker tracking mode, the camera’s tracking algorithm will exclude sound produced by the speakerphone, ensuring that the VC-TR60A focuses only on individuals in the meeting space.
3 year warranty
Lumens offers a 3-year warranty with all its products as standard.
*The warranty policy may be different depending on the sales region, please contact your local salesperson.
Specs Details
Sensor
1/2.8″ 8.51M
Video Format
2160p : 60 / 50
2160p : 30 / 25
1080p : 60 / 50 / 30 / 25
720p : 60 / 50 / 30 / 25
1080i : 60 / 50
Video Output (HD) Interface
HDMI / Ethernet / USB
Optical Zoom
12x
Horizontal Viewing Angle
81°
Digital Zoom
8x
Vertical Viewing Angle
50.5°
Diagonal Viewing Angle
88.9°
Aperture
F1.8 ~ F3.6
Focal Length
3.4 ~ 43.3 mm
Shutter Speed
1/25 ~ 1/10,000 sec
Minimum Object Distance
Tele:1.5m / Wide:1m
Video S / N Ratio
> 50dB
Minimum Illumination
0.5Lux (F1.8, AGC ON)
Focus System
Auto, manual
Gain Control
Auto, manual
White Balance
Auto, manual
Exposure Control
Auto, manual
WDR
Yes
3D NR
yes
Image Flip
yes
PIP
Yes
Auto Tracking
Yes
Speaker Tracking
Yes
Auto Framing
Yes
Panoramic Camera Sensor
1/2.8″ 8.51M
Video Format
2160p 30 / 25
1080p 60 / 50 / 30 / 25
Horizontal Viewing Angle
110°
Vertical Viewing Angle
78°
Aperture
F2.0
Focal Length
f=1.89mm
Pan & Tilt Panning Angle
+170° ~ -170°
Panning Speed
0.1°~100°/sec
Tilting Angle
+90° ~ -30°
Tilting Speed
0.1°/s ~ 60°/sec
Preset Positions
256
Output HDMI
PTZ : 2160p 60
Panoramic : 2160p 30
IP Stream
PTZ : 2160p 30 / 720p 30
Panoramic : 1080p 60
IP Compression
H.264
USB Output
2160p 30
USB Compression
H.264 / MJPEG / NV12
Network IP Protocol
HTTP / RTSP / RTMP / RTMPS / SRT
PoE
PoE+ (IEEE802.3at)
Audio Input
Line In
Ref Audio Input
USB / Line In
Audio Output
Ethernet / USB / HDMI
Audio Compression Format
AAC / PCM
Camera Control Interface
RS-232 / RS-422 / Ethernet / USB
Protocol
VISCA / ONVIF
UVC
Yes
UAC
Yes
General DC In
12V +/- 20%
Power Consumption
PoE: 15W
DC In: 14W
Body Color
Black / White
Weight
1.5 kg
Dimension (WxHxD)
190 ×185 ×144 mm
